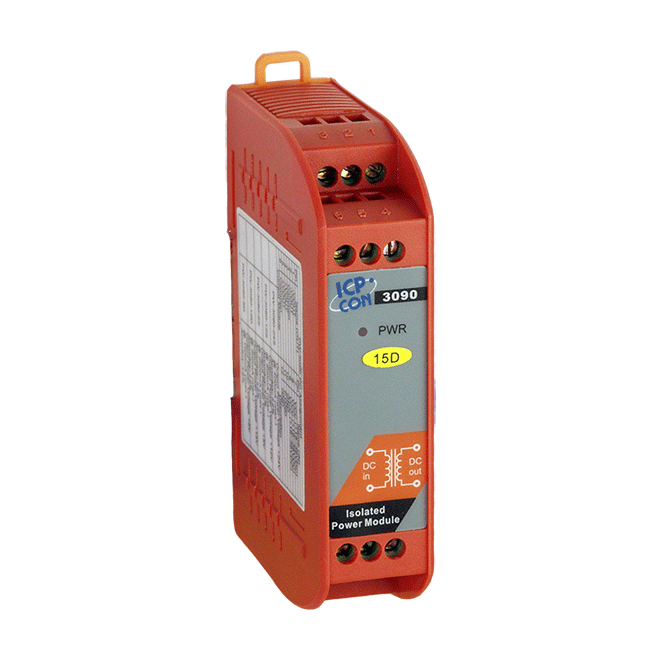

  • QHGK-PW-3090-15D
    電源調理模塊, 輸出電壓 ±15 VDC @ 300 mA (max.)
#




產品簡介
  • 1000 VDC isolation
  • Flexible DIN-rail mounting
  • The PW-3090 series is an efficient (83%) DC-to-DC power module with 1000 VDC isolated protection. It has non-regular DC input (18 ~ 36 V) and stable DC output (5 V, 12 V, 24 V, 5 V, 15 V). Using it, your devices can work with stable power source and against harmful effects in the operating environment. Using it, your devices can work with stable power source and against harmful effects in the operating environment.

規格

輸入

電壓範圍

18 ~ 36 VDC (non-regulated)

極性

Unipolar

輸出

漣波與雜訊 (Max.)

100 mVp-p max.

線路調節

0.2% max.

DC 電壓

±15 VDC @ 300 mA (max.))

隔離

1000 VDC

效率

83% Typical

短路保護

YES

機構

尺寸 (mm)

25 mm x 114 mm x 70 mm (W x L x H)

環境

溫度系數

0.03 %/°C

工作溫度

-25 ~ 70 °C

儲存溫度

-30 ~ 85 °C

濕度

5 ~ 95%, non-condensing
