General |
|
|
CPU |
Intel? 6/7/8/9th Gen CoreTM i3/i5/i7, Pentium?, Celeron? CPU, LGA1151 |
|
Chipset |
Intel? Q170/ H110, TDP 6W |
|
Memory |
DDR4-2133/2400, 2*SO-DIMM, up to 32 GB |
|
Storage |
2*SATA 3.0, 1*mSATA |
|
Expansion Interface |
1*Mini-PCIe (PCIe+USB 2.0) 1*M.2 (Key-E, 2230, PCIe+USB 2.0) |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows 7/8.1/10, Linux |
|

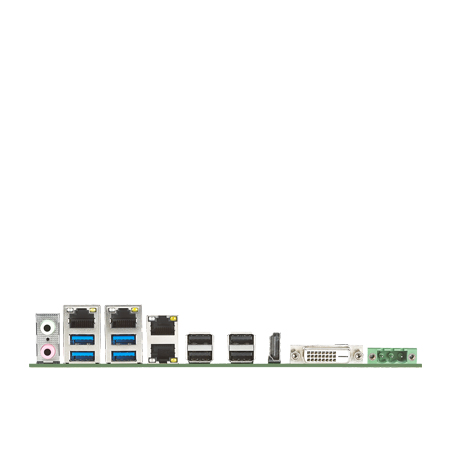

I/O Interface |
|
|
Ethernet |
3*Intel? 1Gbps Ethernet Controller, RJ45 1*Intel? 1Gbps Ethernet PHY, Support iAMT |
|
Serial |
2*RS232, 2*RS232/RS485/RS422 |
|
USB |
Q170: 8*USB 3.0, 2*USB 2.0 H110: 4*USB 3.0, 4*USB 2.0 |
|
Audio |
Realtek? Codec, with MIC + Line-out |
|
GPIO |
8*Programmable GPIO |
|
Display |
|
|
Display Interface |
1*HDMI: max resolution up to 4096*2160@30Hz 1*DVI-D: max resolution up to 1920*1080@60Hz |
|
Multiple Display |
Dual |
|
Mechanical & Environment |
|
|
Dimension |
203*146mm |
|
Power Input |
DC 12~24V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
